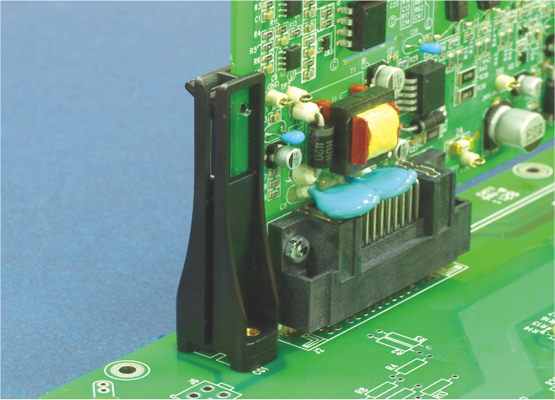

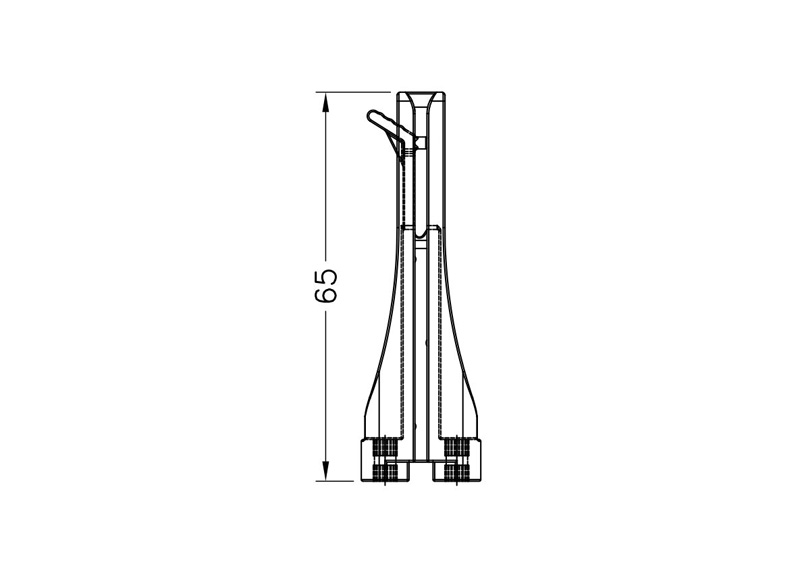

Vertical Screw Mount Metric M3 PCB Card Guide. The featured Release Tab secures the PCB board while the dual-channel design allows for side-by-side mounting. Accepts PCB Thickness of 2.5mm. Length 65.0mm
CGHB-65
Vertical Cardguide
PC + ABS
Black, Blue
Part no. | Material | Color | A B | Package |
---|---|---|---|---|
CGHB-65 | PC + ABS | Black | 89.2 | 500 |
Would you like a sample or a quote? Or do you need a product that doesn’t exist? Contact us through one of the options below!
